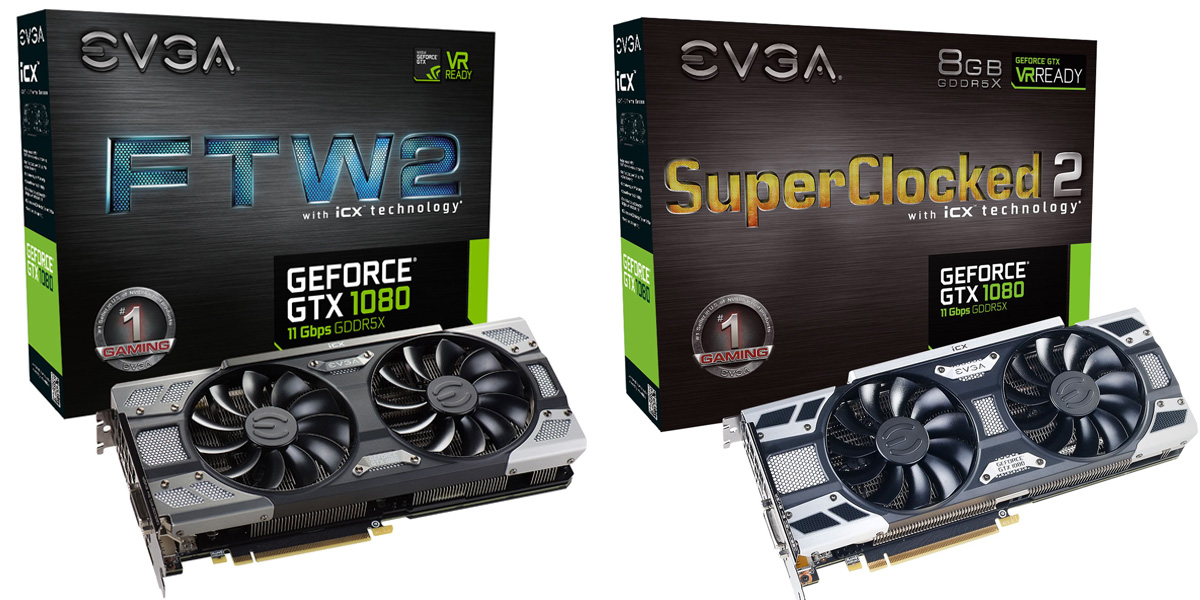

The new EVGA GeForce GTX 1080 FTW2 and SC2 with 11GHz memory is now available and current EVGA GTX 1080 FTW2 and SC2 card owners can get a FREE UPDATE to the newest edition adding up to 10% more memory bandwidth with a firmware update. The new EVGA GeForce GTX 1080 FTW2 and GeForce GTX 1080 SC2 also feature the EVGA iCX Technology.
The EVGA iCX Technology
Thermal Sensors - EVGA iCX graphics cards pack nine Thermal Sensors and Multiple MCUs wherein all the sensors display temperature and performance readings in EVGA Precision XOC and OSD.
Asynchronous Fan Control – Separate left and right fan control including fan curve. GPU fan on the left of the card is determined by GPU temperature. The right fan for the Power/Memory is determined by Power/Memory temperature.
Full Control with EVGA Precision XOC – Each sensor can be monitored in real time and displayed in PXOC OSD.
Added Protection – An EVGA ONLY fuse adds another layer of protection to your card and system.
Interactive Cooling with Thermal LED Display System – User customized RGB colour and visual alarm settings that gives you real-time updates on thermals.
Optimized Airflow Fin Design – Fin holes direct airflow through fins. Half open fin maximized airflow and L-Shaped fins increase surface contact.
Die Cast Form Fitted Baseplate and Backplate – This is to create direct contact with all vital components and improve cooling.
Interlaced Pin Fin on Baseplate – To further maximize heat dissipation with increased surface area on baseplate.
Improved Reliability - Double ball bearing fans with 400% longer lifespan, and low power consumption motor means more power for your GPU.
Hardware Synchronization - Sync your graphics card to other EVGA hardware including the new EVGA CLC CPU Cooler series and more hardware to support in the near future.
EVGA GeForce GTX 1080 FTW2 (08G-P4-6686)
Core
- 2560 CUDA Cores
- Base Clock: 1721 MHz
- Boost Clock: 1860 MHz
- Bus: PCI-E 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 11016 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 352.51 GB/s
EVGA GeForce GTX 1080 SC (08G-P4-6583)
Core
- 2560 CUDA Cores
- Base Clock: 1708 MHz
- Boost Clock: 1847 MHz
- Bus: PCI-E 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 11016 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 352.51 GB/s
Core
- 2560 CUDA Cores
- Base Clock: 1721 MHz
- Boost Clock: 1860 MHz
- Bus: PCI-E 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 11016 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 352.51 GB/s
EVGA GeForce GTX 1080 SC (08G-P4-6583)
Core
- 2560 CUDA Cores
- Base Clock: 1708 MHz
- Boost Clock: 1847 MHz
- Bus: PCI-E 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 11016 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 352.51 GB/s
For more information, visit the EVGA website. To check the free update on how to enable the 11GHz memory speed, check out the EVGA Forum Thread here which includes the new BIOS updates and installation guide.
